产品功能

Product Function

在强制电流阴极保护系统中，辅助阳极工作时进行氧化反应遭受腐蚀，或是周围电解质被氧化，系统回路中总电阻主要由导线、元器件、地床接地几部分组成，阴极保护系统的能耗多发生在阳极接地电阻上，故降低阳极地床的接地电阻对整个系统的运行有很大的影响，降低接地电阻对节约电能是至关重要的。在安装辅助阳极时，同步添加高纯度的焦炭填料可以有效的降低阳极地床的接地电阻。In impressed current cathodic protection systems, auxiliary anodes corrode due to oxidation during operation, and the surrounding electrolyte is also oxidized. The total resistance in the system circuit mainly consists of wires, components, and ground bed grounding. Most of the energy consumption of the cathodic protection system occurs on the anode ground bed resistance. Therefore, reducing the anode ground bed resistance has a significant impact on the operation of the entire system, and reducing the ground resistance is crucial for energy saving. Synchronously adding high-purity coke backfill during the installation of auxiliary anodes can effectively reduce the anode ground bed resistance.

产品特点

Product Features

高纯度，低阻抗

High purity, low impedance

不同粒径可选

Various particle sizes available

含碳量高，导电性好

High carbon content, excellent conductivity

专 业包装，不产生污染，方便运输

Professional packaging, pollution-free, easy to transport

多种型号对应不同应用环境

Multiple models for different application environments

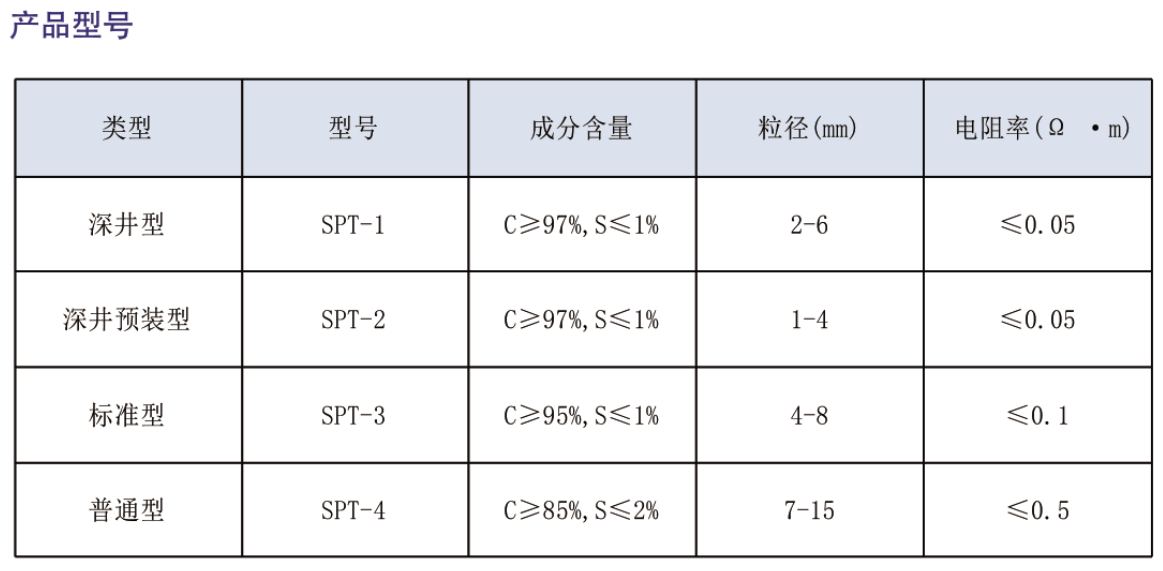

产品型号

Product Models

深井型 SPT-1：C≥97%，S≤1%，粒径2-6mm，电阻率≤0.05Ω·m

Deep Well Type SPT-1: C≥97%, S≤1%, Particle Size 2-6mm, Resistivity ≤0.05Ω·m

深井预装型 SPT-2：C≥97%，S≤1%，粒径1-4mm，电阻率≤0.05Ω·m

Pre-installed Deep Well Type SPT-2: C≥97%, S≤1%, Particle Size 1-4mm, Resistivity ≤0.05Ω·m

标准型 SPT-3：C≥95%，S≤1%，粒径4-8mm，电阻率≤0.1Ω·m

Standard Type SPT-3: C≥95%, S≤1%, Particle Size 4-8mm, Resistivity ≤0.1Ω·m

普通型 SPT-4：C≥85%，S≤2%，粒径7-15mm，电阻率≤0.5Ω·m

General Type SPT-4: C≥85%, S≤2%, Particle Size 7-15mm, Resistivity ≤0.5Ω·m
